StepManiaX Integrated Touch Monitor + 1 Stage
-
15% restocking fee if the order is canceled by the buyer.
Step Revolution LLC reserves the right to cancel or refuse sales. In such cases, payment will be refunded to the buyer. Actual shipping estimations are only estimations and may change due to unforeseen delays or logistics circumstances.
A StepManiaX Stage (all generations) required for use!
External Audio System is required for use.
------------------------
Fun and competitive step-based fitness gaming for Home, Fitness, Education, E-Sports and Family Recreation Centers.
The newly developed hardware features an industrial design and traditional pressure sensors to create an intelligent input and LED based lighting system. This impressive combination provides indestructible hardware that is visually appealing and with ongoing calibration to always provide an optimum play experience, without the typical maintenance required by traditional dance stage switches.
The FREE StepManiaX software guides users with the familiar cardinal directions (Left, Down, Up, Right), in addition to utilizing a new center position that promotes aerobic movement. A large touchscreen navigation system provides the ultimate user experience that is intuitive and easily manipulated by all generations of users.
The songlist provides a plethora of upbeat, catchy and energetic music that appeals to Western and European audiences. Over 500+ songs available (and more being added) gives a wide selection of new tracks and familiar favorites that have been revived from past Step Revolution titles.
The system includes everything needed to operate with minimal technical knowledge required. A StepManiaX Stage (all generations) is required for use!
Audio Outputs provided for connection to an external audio system.
MONITOR FEATURES:
- FREE Android based StepManiaX Software

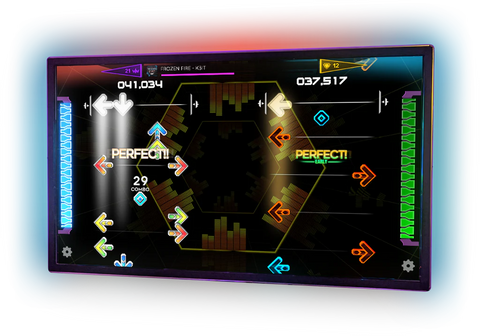

- NEW! Ultra-thin 43" Touch Screen Monitor VESA Mount Compatible
- StepManiaX Software and CPU (and network updates) all integrated into the monitor. A StepManiaX Stage (all generations) required for use!
- Additional FREE & Paid Downloadable Content
- Audio Output 3.5mm (analog) provided for connection to an external audio system.
- Complete functionality without the requirement of a network connection
- Built in auto switching 100V to 240V AC, 50Hz - 60Hz power supply
- Built-in LED Back Lighting (Software Controlled)
- Can also function as a external HID touch monitor with external CPU & Software.
- 1 year warranty on parts
(additional shipping costs excluded)
SIZE:
953mm(W)×539.2mm(H) : Border 1.4mm(D)
Specifications:
LG Display 43"
1920(RGB)×1080, FHD, 51PPI
Viewing Angle: 89/89/89/89 (Min.)(CR≥10)
Display Colors: 16.7M
Contrast Ratio: 1200:1 (Typ.)
Response Time: 8ms (Typ)
Touch: 10 point HID infrared multitouch frame
Tempered Glass Screen Protector
WEIGHT:
17KG (37.5 lbs)
REAR MOUNTING HOLES:
6 Holes (M8 Screws) 10MM length , Compatible with 300mm wide and 50mm high
SHIPPING DIMENSIONS:
(1) wooden crate "Monitor"
81.57lbs D:46.063" x W: 29.53" x H: 7.87"
37KG D:117cm x W:75cm x H:20cm
STAGE FEATURES:
An industrial step based controller designed for use in a variety of environments and software configurations. StepManiaX Stages do not include the FREE StepManiaX Android Software that is provided with All-In-One or Dedicated Cabinets.
Dimensions:
35" x 47" x 7"
889mm x 1194mm x 178mm
Weight:
220 lbs
99.79 KG
SHIPPING DIMENSIONS:
(1) wooden crate "Stage" - 255lbs 49" x 40" x 12"
FEATURES:
-
Stages can be linked together to support 2 player and double/full play modes.
NEW! Plug N' Play USB C Interface / External 12VDC Connection.
USB C to USB A Cable included for connecting to a standard PC.
- NEW! Force Sensing Resistor "FSR" sensors (4 per panel) with improved automatic calibration for always "perfect" sensitivity and minimal hardware maintenance
Sensitivity customization via software. (20 FSR Sensors included) - NEW! Adjustable Panel sizes: Support for square or rectangular panels. (rectangular panel kits sold separately)
- NEW! Intelligent LED Matrix lighting per panel
Automatic lighting with "step on" support and assignable colors - NEW! RGB LED motion decal customization via software
- NEW! RGB LED floor lighting with color customization via software
- NEW! (5) 12mm scratch resistant Super Acrylic Universal Directional Panels
- NEW! (4) 16mm scratch resistant Super Acrylic Corner Pass-Through Panels.
- 5 panel input (Left, Up, Center, Down, Right):
Interchangeable panel positions for X or + Configurations
(upgradable to 9 panel input via kit sold separately)
- (1) Stainless Steel panel included for use with center position for authentic 4 panel "feel"
- Removable Stainless Steel support bar (fixed height) with improved width/length/thickness.
- (1) V bracket included for use with linking multiple stages.
(doubles configuration) - Vibration resistant / shock absorbing panels.
- Built in leveler/locking antivibration support wheels with improved additional locking wing screw.
Can be used on Carpet/Hardwood/Concrete/Linoleum and a wide variety of flooring. - User serviceable
- Modular design allows for compact storage, transporting and easy replacement.
- Software configuration tool for diagnostics, adjustable sensitivity and customized lighting control.
- Built in auto switching 8.5A 100V~240V AC, 50Hz - 60Hz power supply.
-
One year technical support and warranty on parts: Does not cover scratches, blemishes, damages caused by inconsiderate use or improper maintenance.
(additional shipping costs excluded)
